NetworkToolbox – Software user guide


1.General

Please find below some general information about NetworkToolbox and about this manual.

The manual can be opened from inside the App or directly using the following link: http://manuals.creating-your-app.com/NetworkToolbox.

If you prefer a printed version, just tap on the PDF Icon on the website version to download a PDF file.

Please note: In case of issues with the App, you will find a lot of possible reasons and solutions in the last chapter “Common issues” of this manual.

1.1.About this App

This App was designed and developed by Marcus Roskosch, an independent developer and founder of creating-your-app.com in 2008.

The main purpose of this App is to allow you to analyze the security of your own network.

For this, NetworkToolbox offers various individual Tools. Tools for information gathering, such as Device, Shodan, Morpheus, Map and Domain, and tools for in-depth analysis or connection by using certain protocols or ports.

All tools are tied together allowing easy switching between tools.

For instance, after locating your network via Shodan, you can directly ping and even scan the network, and once you have identified open ports, you can directly access each port by selecting the appropriate protocol. All findings can then be bookmarked for later reference.

Also, content, links and addresses can be downloaded, printed or exported via e-mail.

Last but not least, a Glossary is included that explains terms from A , “Access control” to Z, “Zero day”.

This manual describes how to use each individual Tool and the App in general.

Legal

This App is designed to assist users in analyzing their own networks, or networks which they have been given permission to analyze in order to determine the security of such networks.

It is not intended to assist with analyzing remote sites with the intention of breaking into or exploiting services on those sites, or for information-gathering purposes beyond those allowed by law.

I hereby disclaim any responsibility for actions taken based upon the information in this App, and urge all who seek information towards a destructive end to reconsider their life, and do something constructive instead.

2.Using the App

The App has five sections:

  • Tools – With all individual Test and information-gathering tools

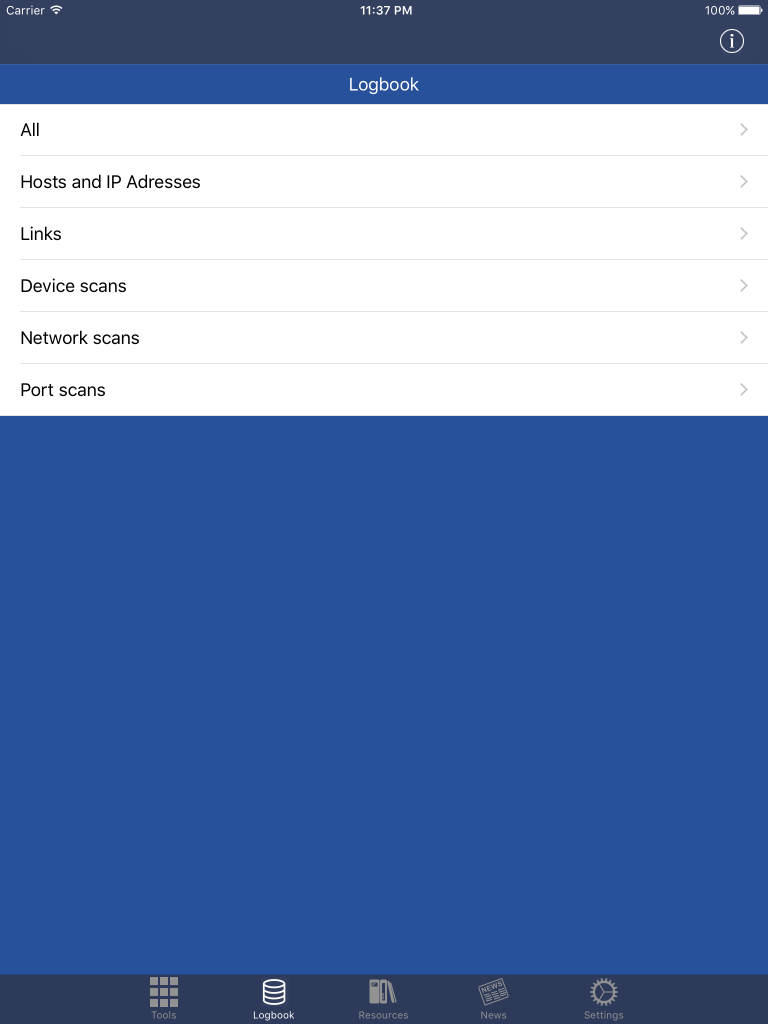

  • Logbook – Where you can find all collected data such as Links, IP Addresses etc.
  • Resources – With Tutorials, Samples and background information
  • News – My News Blog with Network and security-related news
  • Settings – To customize this App

To switch between sections, just tap on the lower Tab-bar Icons:

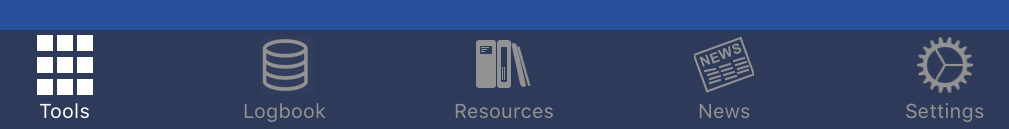

tabbar



3.Tools

On the main Tools screen, you will find all the individual Tools of the App which can be started by tapping the icon, just as you do with the App icons on the main, home screen of your iPhone/iPad device.

MainScreen

The Action button […] at the top lets you switch between icon-view and list-view of the tools.

The Spyglass ? Icon at the top can be used to search for a particular tool by entering a search term. Searching for FTP for instance will return the FTP and SFTP Tools as well as the Glossary Tool with the definition of the term FTP.

Using the Tools

All tools work in a similar way. Some tools are a little different, depending on the purpose of the tool.

After you have opened a tool by tapping on its icon, you will see some entry fields in the upper part of the screen. Simply enter the information you want the tool to analyze.

For some fields, there is a Selection button . By pressing this button, you will get a list of possible values for the entry field. For instance, for the Port field, you will get a list of commonly used ports. However, you can also enter the value manually, and you can even enter values that are not in the list.

Further below, there is usually a Connect, Scan, Start or Search button which performs the desired action of the Tool.

The following example shows the Morpheus Tool:

morpheus

The Recent list

Below that button, you will see a “recent list”. This list contains results of previous analyses. For most of the tools, pressing here recalls the entries of the upper entry field from previous analyses . Finally, it goes straight to the results of your last analysis as if you had pressed Connect or Start.

In some cases, such as search tools like Shodan or Morpheus or the Port- or Network scan tool, another search will not be started but instead will conveniently show you the results of your last search and no extra time-consuming search is necessary. If, however, you want to perform another search, you just need to go back and press the Search button again.

The command-bar

Some tools offer a command-bar at the top like here in the FTP Tool with Directory Commands such as .. / CD MD RD DEL and REN:

ftp

The command-bar, located between the content screen and the navigation bar, contains buttons depending on the current situation. For instance, if you select the FTP protocol in the Telnet tool, you will see a different set of commands than you would had you selected the Telnet protocol.

The command-bar buttons can be scrolled horizontally if they don’t fit on one screen (which is often the case on the iPhone). If a button is highlighted yellow instead of white, it indicates that this function has been pre-selected, being the one you are likely to want to use.

The […] Action Button

The Action button […] can be found in different locations. It can be used to perform further actions depending on whatever is currently selected. After tapping the Action button, a menu with context specific options will be displayed.

The Action button at the top of the tools can often be used to copy, print, e-mail or add the contents to the logbook for further analyses.

Wherever a host name or IP address is displayed, perhaps as a result of a search, the action button […] can be selected and various options for proceeding from there will be offered.

This functionality allows you to jump easily between the App’s tools.

This way, you can drill down your search results by further applying individual additional tools.

Below, you can see the Selection button and […] Action button in action:

The list that pops up after the action button […] has been tapped on an IP address or host lists all the tools that are available in NetworkToolbox. The most appropriate tools are highlighted by a light blue color and the list will directly scroll to this section. In addition to the tools, there are also entries for:

  • Copy – to copy the IP address or Host name to the pasteboard
  • Add to loogbook – To add the selected entry to the Logbook (see chapter Logbook of this Manual)
  • E-Mail – to send the selected entry via e-mail
  • Wake on LAN – to send a Wake-Up call to a Network Device which supports this feature

3.1.Device

DeviceThis tool provides Network, Hardware, System and Sensor information about your iPhone or iPad.

How to use

Just start this tool and, after a while, all available information will have been gathered and will be available divided into the following categories:

  • Network – With information about your current IP Addresses, WiFi and Cellular Information, Network Interfaces and Proxy information
  • Hardware – With Device information such as Accessories, Battery, CPU and Bluetooth
  • System – With information about Model, Localization and Memory usage
  • Sensors – With information about the various Sensors such as Gyroscope, Accelerometer, Pedometer etc.
  • URL-Cache – With information about the Browser URL Cache usage
  • Cookies – With information about Browser Cookies

Just select the desired category. Some more values might be available by further drilling down the categories.

Please note: In the past, the Device MAC Address has been offered here. Since iOS 7, Apple hides the MAC Address for security reasons so they are no longer available.

Please also note: Besides SSID and BSSID, no further information about your WiFi connection (e.g. signal strength, channel, other available WiFi networks) can be displayed by any App. Apple has restricted access to this information to their own Apps and the iOS itself.

3.2.Connections

ConnectionsThis tool is useful if you want to identify Apps that are generating undesired network connections.

Basically, this tool lists all currently or still open or recently closed network connections on your device.

For your convenience, the connections are broken down into:

  • External TCP connections – which contains all connections to other devices
  • Internal TCP connections – which contains all connections between Apps and processes on your device
  • UDP Connections – which contains all other stateless connections

After tapping on one of these categories, you will see a list of connections with their corresponding source and destination addresses.

When tapping on such an entry, you can see more details of this connection and perform further analysis.

Under Resources, Tutorials and Identify hidden App connections you will find a tutorial which explains how to use this Tool to find undesired network connections of Apps on your device.

Please note: With iOS 10, Apple restricts access to the API which is being used by this tool so on iOS 10, this tool no longer works.

3.3.Shodan and Morpheus

ShodanMorpheusShodan and Morpheus are search engines that let you find devices such as computers or routers on the Internet. You use them just as you would use Google to search the Internet for websites containing specific terms.

More information about device searches can be found in the chapter Device search with Shodan or Morpheus in this Manual.

For further details about the special Shodan settings, please have a look at
Shodan settings

Morpheus is an alternative to Shodan. Like Shodan, it is a device search engine and can be used to search for certain Servers, Routers, Set-Top Boxes and other devices on the Internet. Morpheus’ strength lies in its searches for Ports 80, 21 and 443, whereas Shodan searches for additional ports. Morpheus also has newer database entries and only keeps older entries if they continue to be accessible.

Both search engines have their pros and cons and it’s probably a good idea to try both engines when searching for a particular device.

Please keep in mind, Morpheus is currently in Beta testing and might be offline or slow at times.

How to use

Just enter a search term you want to look up. You can also select one of the more popular search terms by pressing the button and selecting one of the listed entries.

In addition, even without using a specific search term, you can also specify a country, a port, a network name, a host name or an operating system as additional search parameters.

Please note: The country needs to be entered abbreviated (eg us for USA or gb for the UK). Alternatively, you can select the country by using the   button.

It is important, to enter good search terms or search criteria. Otherwise you will get too many results or no result at all. As a good starting point, you can use the HTTP-Head tool and inspect similar websites or devices and look for specific terms in the HTTP Header, which can be used as search term.

Once you press Search, the Shodan or Morpheus database will be queried. The results will be displayed in a list. This list shows the host name, if available, in the title of each entry along with detailed information such as IP address, operating system, location and actual device response.

If you tap on the action button […] , you can further analyze that device. If you tap on a line, you will see further details about this particular device. When tapping here on the Location, the Location of the device will be displayed on a map. Under Info, the complete Response of the device will be displayed which is, what the HTTP Head tool would be display for this particular device..

Please note: It is up to you and depends on the law in your country on where you are allowed to proceed from there. Up to this point, you will just see what a device responds to anybody who connects to it. This information will be sent also for instance if you visit this particular device with your web-browser. But in that case, the browser will not show you what it receives from the server and only displays the website. It can be interesting and useful to analyze such responses but it will definitely not be allowed to use this tool to find and break

3.4.Morpheus Map

MorpheusMapThis tool uses Morpheus to search for devices within a certain distance of a given location.

You could, for example, use the tool to see if your own devices have been found by Morpheus.

More information about device searches can be found in chapter Device search with Shodan or Morpheus of the help text.

How to use

Just enter the central point of your search manually by entering the Latitude and Longitude values or press the button. On the next screen, you can either tap on the map to pin the location from which you want to search or tap the Spyglass ? Icon at the top and enter an address in the upper search field. If you leave this screen by tapping the back button, the corresponding coordinates will be used.

Next, enter a maximal radial distance from the center for your search.

Finally, you can also enter a search term as in the Morpheus or Shodan tool, but you can also leave this field empty.

Once you press on “Search for networks”, the Morpheus database will be searched for devices in the particular area. If devices have been found, they will be displayed on a map. If you want to see the results in a list, just use the corresponding button in the upper right corner.

3.5.Inspect (NS-Lookup)

This tool is basically a general purpose tool to get any kind of information about a certain IP Address or host.

This tool combines a Whois search, NS Lookup, Reverse Domain Lookup and general IP Information tool. It is useful should you wish to discover the provider and location and DNS (Domain) information about an IP address or hostname or just the IP Address of a host or vice-versa.

How to use

Just enter an IP address or hostname in the entry field and press Search.

The result will show (if available):

  • Domain – The domain name of the IP address
  • IP address – The IP address of the domain
  • Country
  • Location – The estimated location (press > to see the address on a map)
  • Provider – The provider hosting this address
  • DNS Record information – MX-, NS-, SOA- and TXT- entries

And more information about DNS Records or Internet Storm Center Attack information if available.

3.6.Ping

PingThis tool can be used to test the reach-ability and availability of a network device.

You can also see the ping time in milliseconds to compare or check the speed of a connection.

How to use

Just enter the IP address or domain to be tested. After you press the Ping button, another screen will show.

Here you will see the response time in milliseconds for the particular destination both in the list and also as a diagram at the bottom.

3.7.Network Scan

NetworkThis tool performs a Network-Scan of a given IP Address range.

This is useful, if you like to get an overview of all devices on a network.

More information about network scanning in general can be found in chapter About network scanning of this manual.

How to use

Enter both a start IP address and end IP address for your scan and press the Scan button.

Next, you will see the progress of the scanning procedure while found devices will be added to the list until the complete address range has been scanned.

You can further analyze each entry by tapping on the action button […] on the corresponding entry in the list. For instance, you can perform a Port-scan for each individual IP Address.

Please note: You can also enter the IP address range in slash notation (net/mask). E.g. 192.168.1.1/24 means to scan from 192.168.1.1 to 192.168.1.254 or entering 192.168.1.1/16 will scan up to 192.168.255.254.

Please also note: You can also Enter IPv6 IP Addresses here.



3.8.Port Scan

PortsThis tool performs a port scan of a specified IP Address or Domain.

This is useful if you wish to find out whether necessary services like HTTP, FTP etc. are available as expected or if you wish to check if more ports than necessary are accessible which might then be a security issue.

More information about port scanning can be found in the chapter About port scanning of the help text.

How to use

Enter an IP address or domain in the first entry field. IP Addresses can be entered as IPv4 or IPv6 Address. For your convenience, you can also press the selection button next to the Address field to select your Local IP Address or IP Addresses recently used throughout the App.

Next select a scan range by either entering all Ports or Port ranges you wish to scan, separated by commas (or ranges by using the dash/minus sign e.g. 10-100 means Ports 10 to hundred) or any combination of commas and dashes.

Or tap the selection button next to the Port field to select one of the predefined port ranges. Select Default to cover the most  common and important ports.

Next, press Scan to perform a port scan. Now you can see the progress of this scanning process while all open ports will be added to the list.

By using the action […] button on a particular entry on this list, you can perform further actions. For instance, you can use the HTTP Tool for an open Port 80 to see the results of a Web connection to this IP Address on that Port.

By tapping on the line itself, you will get more details about the Port including a Description of the common use of this particular Port.



3.9.Traceroute

TracerouteThis tool analyzes the path or route of the data from your device to any destination IP address or host.

Before data, such as a request to display a certain website, ends up at the destination IP address, the data is received and passed on by many additional nodes such as routers.

The speed of the connection will depend on the number of such additional nodes and the utilization and bandwidth of each node.

How to use

Enter the destination IP address or host and the port, which is usually 80 for websites. When entering IPv6 Addresses along with a Port number, you need to use the [n:n:n:n:n:n:n:n]:port notation.

The Max TTL value represents the maximum number of nodes that should be analyzed. The default value is 20. Trace route will stop either when the destination host is reached or when the maximum number of hosts entered in this field has been reached.

The timeout value needs to be increased if slow nodes are involved. However, a value of 100 should be fine here.

Max. attempts means the number of times the tool should try again after a node connection has failed. The default value of 5 should work in most cases.

Once you press the Trace route button, you will see a new screen. Press Start and the tool will attempt to identify all nodes along the path to the destination.

Each node will be displayed along with its network name, if available, and its IP address. By tapping on an entry, further analysis can be performed by selecting one of the other tools. For instance, the domain info tool can be used to discover the provider of, or organization associated with, the node and even its location.

The Action button at the top can be used to copy, print or e-mail the node list.

3.10.Health Check

HealthCheckThis tool helps to quickly monitor a number of networks (IP Addresses or hosts) in one step.

This way, you can quickly find out if any of the network components on your network or any of a set of Web-Servers are working correctly or may have an issue.

How to use

On the main screen, press “Add” to add a new Check List. After entering a name confirm by tapping the Check button at the top of this box.

Next you will see a new entry line on the Check List with the name you previously entered. Tap on this line, to open the details page for this Check entry.

Now you can add individual single IP Addresses or Host names by using the “Add” button.

If you want to Add tests for multiple IP Addresses or Hosts, use the “Add multiple” button. Here, you can enter a list of IP Addresses or Host Names, separated by Comma (,).

For each entry, you can choose which test should be performed. This could be a simple Ping test, which just checks the availability and response time or more sophisticated tests like a POP3 Mail Server test which will check whether or not the Mail Server is running. Just choose your desired test that should be performed by tapping on “Please select a Type” and select a Type from the list like here:

health-1

Depending on your selection, you will see additional parameters to check for. For instance, for HTTP Tests, you can check if a HTTP-GET Request will return a certain Text or for a Certificate Test you can enter the Expiry in days. A test will be seen as failed if one or more of the additional criteria don’t match.

Once you have entered the values you like to check, you can press the Test button to perform a single test with the given values.

health-2

Here, the HTTP Test on domain www.test.com succeeds in 441 milliseconds. If you were to enter 200 in the Timeout field and perform another test, this test would fail as the actual response time is higher than the required.

Press the Check button at the top of this screen to complete adding a new Test.

You can continue to add more Tests to your list as desired. Once completed, you can perform a Test on all entries in this list one after the other by tapping the Start button at the top.

For each individual test, a green check-mark will indicate a passed test whereas a red cross indicates a failed test.  By tapping on the line, you can see the reasons for the failure.



3.11.Telnet

SocketThis tool was formerly called Socket Tool as it basically offers a general purpose IP connection where everything received after connecting to a certain IP on a certain Port will be displayed on the screen and everything everything typed will be sent back to that Address.

However, the most common use of such a Tool is a so called Telnet Terminal connection to Port 23 which is the reason why this Tool is now called Telnet Tool.

Nevertheless, it can still be used to analyze any kind of connection, even HTTP, FTP, POP3, IMAP, SMTP or any other connection.

Often, it is useful to connect to a certain Port using this tool before using a dedicated tool for a certain Service as this Tool shows a lot of useful information which helps to analyze an Address at a certain Port.

Once connected, this tool shows everything that is received from the server, and everything typed in via the keyboard will be sent to the server.

This tool is ideal to see if a certain service is active and to analyze the information provided by a certain service. It can even be used to retrieve e-mails from a mail server or to perform a password test on an FTP server (see the chapter password test of the manual).

How to use

Enter an IP address or host in the first entry field. IP Addresses can be entered as IPv4 or IPv6 Address. For your convenience, you can also press the selection button next to the Address field to select your Local IP Address or IP Addresses recently used throughout the App.

Next enter the Port you like to connect to by either entering the Port manually or tap the selection button next to the Port field to select a Port from the list.

Next press Connect to get connected to the Address. After connecting, everything received from the Address will be displayed. Usually you will see some kind of welcome message.

Protocol

Depending on the port you have selected, a protocol will be applied automatically. However, if the protocol is unknown or you wish to use another protocol, just press the action button […] and select another Protocol.

Depending on the selected protocol, different commands will be available in the command-bar.

You can use the commands to send a particular command to the server. For instance, when connected to an IMAP server, you can use the “EXAMINE INBOX” command to get an overview of the e-mails residing in the Inbox. Some commands will ask for additional parameters before being sent.

The commands offered here are only the most commonly used commands or the most useful commands. You can, in fact, enter any individual command by just typing on your keyboard.

In addition to the Protocol, the action button […] offers additional settings and options such as:

  • Copy – to copy the contents of the display to the Pasteboard
  • E-Mail to send the contents via E-Mail
  • Print – to Print the contents
  • Add custom password – Once you used the Login button (only available for certain protocols) to submit a username/password pair, you can use this selection to add this pair as new entry to the custom password list (see here)
  • Wrap lines – to automatically wrap lines if they reach the right end of the screen
  • Echo – to also display all characters typed in
  • Show HEX Chars – to reveal characters that are usually invisible by showing the Hexadecimal representation

To send special characters, not available on the Keyboard, just hit the Key button at the top and select the desired character from the list.

The Telnet Tool also offers the possibility to submit contents from a previously created Macro by hitting the Macro button at the top and selecting the desired Macro name (See here for more information).

3.12.FTP and SFTP

FTP SFTPThe FTP and SFTP Tools provide file browsing and downloading functions to network devices that have this type of service enabled.

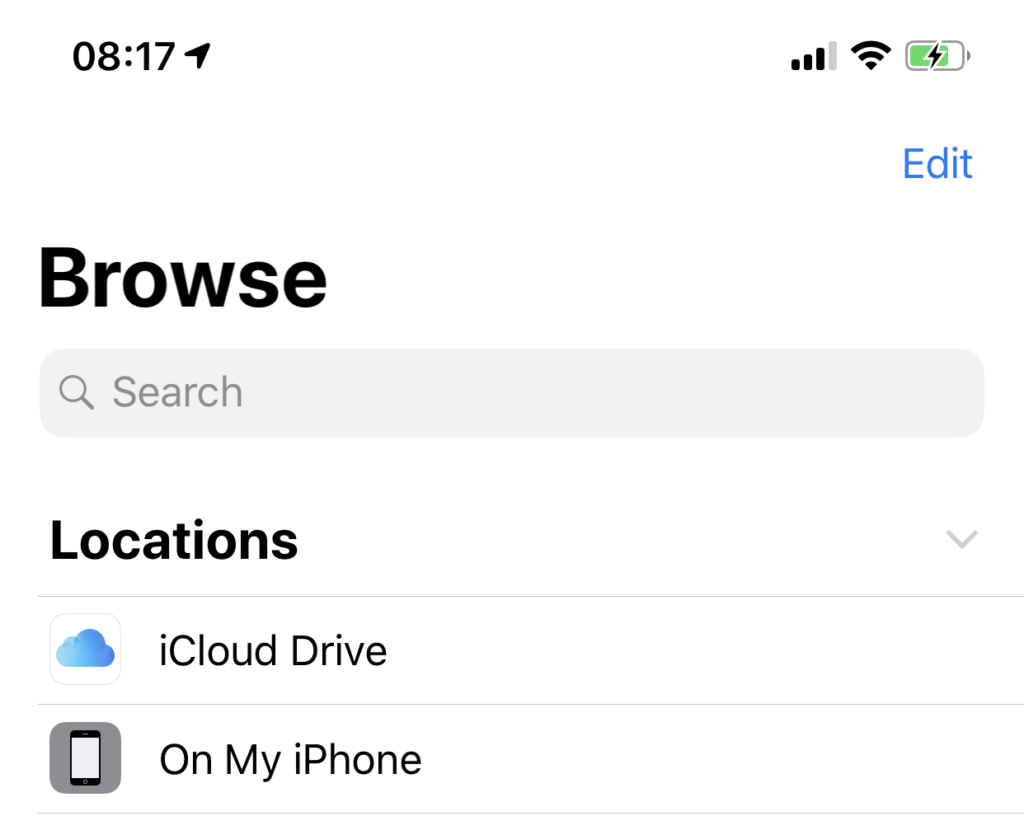

Please note: As iOS doesn’t offer any kind of shared directories, files downloaded by these tools will end up in the separate local file browser Tool. Also, if you want to upload files, you need to use the local file browser Tool to upload the file to your iPhone or iPad.

How to use

First enter the host name or IP address of the server to which you wish to connect. Then enter the port number: 21 for FTP or 22 for SFTP. However, any other port number can be entered as well.

For SFTP you have to provide a username and password right at the beginning if the server requires authentication. For FTP this is optional and can also be entered later or along with a password test.

For SFTP you also can provide a Public / Private key combination instead of a password, see further below under PKI of this Manual.

The credentials entered will be sent to the server automatically after connection. If these credentials are wrong or if no credentials have been entered at all, the password test tool will be started automatically. For more information see the chapter Passwords of this Manual).

Once connected you will see the current directory of the connected server. In this view, you can change directories by just clicking on directory entries.

The command bar at the top offers various commands to change directory, alter files and even to download or upload files. The commands in the bar can be scrolled horizontally if they don’t fit on one screen.

The functions can be used as follows:

  • .. – to change one directory up
  • / – to change to the root directory
  • CD – to change to a specific directory (the name will be asked after pressing)
  • MD – to create a new directory
  • RD – to remove a directory
  • DEL – to delete a file
  • REN – to rename a file
  • Download – to download a file
  • Upload – to upload a file
  • View – to view a file

The integrated file viewer can display txt, html and even PDF files. It uses the corresponding file viewer based on the file extension. If you wish to view a file in a certain file viewer but the file has the wrong extension (e.g. .log files) you would need to correctly re-name the file extension.

If you wish to view the file with any other App on your device, such as your preferred PDF viewer or sophisticated file browser, just download the file to your local storage area and use the open command local files browser tool.

Using Public / Private keys


It is more secure to use Public / Private keys instead of a Password. This is only possible with the SSH protocol which is used for SFTP but not for FTP.

In order to use Public / Private keys for a particular server, the server needs to be setup to accept Public / Private keys. Under Resources, Tutorials and Public/Private key Tutorial you will find a tutorial which explains how to setup a Linux server to use Public / Private keys.

To access a server with Public / Private keys, you can use the button Public / Private keys and enter, paste or load the key combinations in the following screen.

Here, you should use the Validate button to verify if the data you have entered is correct.

To maintain multiple keys, you can use the dedicated PKI Tool which is explained here.

Please note: You still need to enter a username for logging in to the server. But you also need to enter a Password if you are using an encrypted Private Key (which is recommended). Once a Private key has been entered, the Password will be no longer the Login Password but the Private Key Password.

If you don’t use an encrypted Private key (maybe for testing purposes), you can leave the Password field blank.

3.13.SSH

SSHThis Tool offers a SSH (secure socket) terminal connection to a server offering the SSH service.

SSH has replaced Telnet as Telnet is highly insecure whereas SSH uses an encrypted connection.

How to use

Enter the IP address or domain to which you want to connect as well as a port number, which is usually 22 for SSH. You can enter username and password if you already know the credentials.

If you want to use a Public / Private key combination instead of a password, see further below under PKI in this Manual.

Once you press Connect, a connection will be established. After this, you need to press the button marked Login in the command bar. The username and password combination you previously entered will be used if you don’t select any other combination in the list to perform a password test as described more in details in chapter Password tests of the help text.

You can enter any individual command in the entry box at the top behind “Cmd:”. After pressing the Send button, the command will be sent.

Using Public / Private keys


Public / Private keys are more secure than a password.

In order to user Public / Private keys for a particular server, the server needs to be setup to accept Public / Private keys. Under Resources, Tutorials and Public/Private key Tutorial you will find a tutorial which explains how to setup a Linux server to use Public / Private keys.

To access a server with Public / Private keys, you can use the button Public / Private keys and enter, paste or load the key combinations in the following screen.

Here, you should use the Validate button to verify if the data you have entered is correct.

To maintain multiple keys, you can use the dedicated PKI Tool which is explained here.

Please note: You still need to enter a username for logging in to the server. But you also need to enter a Password if you are using an encrypted Private Key (which is recommended). Once a Private key has been entered, the Password will be no longer the Login Password but the Private Key Password.

If you don’t use an encrypted Private key (maybe for testing purposes), you can leave the Password field blank.

3.14.SMB

SMBThis Tool allows to browse for and connect to so-called Samba Shares or Windows File services.

You can browse directory trees or download files by using this Tool.

How to use

Enter an IP address or host in the first entry field. IP Addresses can be entered as IPv4 or IPv6 Address. For your convenience, you can also press the selection button next to the Address field to select your Local IP Address or IP Addresses recently used throughout the App.

Also, all discovered Samba or Windows Shares will be listed here.

You can either leave the next Username and Password fields empty if the Server you want to connect to offers Guest access. Otherwise enter your credentials here.

Next, just tap Connect to connect to the server.

To change directories, just tap on the Directory entry on the list or use the .. / CD buttons at the top.

To download or view a file, just tap on the file and use the action button […] at the top and select either Download or View file.

Please note: As iOS doesn’t offer any kind of shared directories, files downloaded by these tools will end up in the separate local file browser Tool.

3.15.HTTP Head

HTTP-HeadThis tool can be used to analyze the response of a web-server when it is being connected.

Web-servers, and even devices with web interfaces such as routers, usually respond with a lot of interesting information when they are connected.

From a security point of view, this information should be as short and as neutral as possible. Some devices, however, even respond with information about default username and passwords.

This HTTP response is what Shodan and Morpheus collect in their databases, and this information is used to identify device types and includes information such as server type, operating system, version etc. Once this information is known, a hacker can look for exploits in this particular device and try to break in.

How to use

Enter the IP address or domain and the port number, which is usually 80 for websites, and press Check.

The tool will then try to connect to the web-server and will show what the web-server responded after it connected.

The results can be displayed in three different formats HTML, Source or Text by tapping the corresponding command-bar button.

The Action button at the top can be used to copy, print or send the information via e-mail or for further analysis of this server with any of the other tools.

3.16.HTTP

HTTPThis Tool basically acts like a regular Web-Browser but offers several features that help to analyze the response of a web-server.



For instance, this Tool can:

  • mimic different browser types like Firefox, Safari and even mobile browsers
  • Allow login with standard or custom username/password combinations
  • Store discovered username/password combinations for later reference
  • Test the web-server on common HTTP parameter exploits
  • Use different protocols
  • Display results in source code, plain text or XML-Tree

How to use

Enter the IP address or website domain in the first field. Enter the port, which is usually 80 for a regular web-server, in the next field. If the website requires authentication, you can optionally enter a username and password in the following fields.

The so-called Agent is the response of a web-browser to a web-server’s request for details of the browser being used to access the web-site (see the chapter Browser agents of the Manual for more information about this subject)

The so called Mime type informs the web-site of the data type (language and format) the browser is set up to receive. This could be HTML, which is the default for a web-browser, text/plain which just shows plain text, and no formatting at all – if supported by the web-site. XML is used for RSS feeds or web-services for instance.

Once the web-server connection has been opened by using the Open button, the content will be displayed as in a regular browser.

If the web-site requires authentication, the credentials entered earlier will be sent to the server automatically. If these credentials are wrong or if no credentials have been entered at all, the “Login” tool from the command-bar (the bar above the browser screen) will be started automatically.

The command-bar

The command-bar, located between the content screen and the navigation bar, contains various buttons. These buttons here can be scrolled horizontally if they don’t fit on one screen (which is often the case on the iPhone). Yellow text on a button (instead of white text), indicates that this function has been pre-selected as being considered the most relevant.

The Login command starts a function that lets you test the server for certain commonly used username and password combinations. For more information see the chapter Password tests of this Manual.

The Test command starts a function that lets you test a server or device for certain so-called Directory traversal exploits. For more information see the chapter Traversal tests.

The Reload command will simply repeat the last request to the web-server and reload the website.

The HTML command will show the content in HTML (Browser like) format. This is the default view. Once selected, the text on this button is highlighted in yellow.

The Source command will show the content as source code.

The Text command will remove all HTML tags and show the content as plain text.

The XML command will display the content in a hierarchical tag browser. This view can also be used to analyze HTML content on an HTML-tag basis and not only to view XML content.

3.17.Spider

SpiderThis Tool can be used to analyze (crawl) a website and get a list of links to other websites as well as a list of content a website wants to hide.

How to use

Just enter the domain of the website you wish to Spider and the port, which is usually 80. After pressing Start, the website will be analyzed.

By selecting “Websites” in the command bar, which is the default selection, you will see a list of links the website contains. These links can even be hidden links that are not visible when browsing the website. You can further analyze, or just visit, the link by selecting the corresponding list entry and then selecting the desired tool in the list.

By selecting “Robots” another list will be displayed. This list contains all locations on the web-server that the website wishes to hide from search engines like Google. Most of the search engines will follow this list but some don’t.

The Websites list can be useful to see if your website, or any other specific website, contains links to destinations you are not aware of.

The Robots list can be useful to see what kind of information a website tries to hide or to see if the information you want to hide on your own website is complete.

3.18.WEB-Service

WebServiceA web service is a function that can be accessed by other programs or websites over the web (Http). Web services are often used to allow other websites or users to use certain functions of a website without using a website to access the information. One example is the Google geolocation services.

Web services usually consists of one or more of the following pieces of information:

  • URL (sometimes called EndPoint of the Service)
  • URL Parameter
  • Header
  • Body

This tool of NetworkToolbox allows you to analyze and test web services of any type.

There are various even quite interesting public web services available which can also be used by this tool.

How to use

First, you need to enter the Address (Endpoint) of the service you want to use. If necessary, you can also add the port, username and password (which will most of the time not be needed).

Then, you need to enter the service information of the service. For this, just tap on the selection button on the right side of the “service” entry.

Entering service information

On this screen, you can enter URL Parameter, Header and Body of the service you plan to use. The information that needs to be entered here depends on the service you plan to use and is usually provided in the documentation of the service.

To get an idea for a service or just to test, you can tap on the […] button at the top and select “Load predefined” to load one of the provided sample services.

The […] button also offers the possibility to Save, Load or Delete service information you are entering here on this screen.

Once you have finished entering the service information, you can close this screen with the checkmark on the right side.

Start the service request

Once all information for the service has been entered or selected, you can access the corresponding service by one of the three methods “GET” “PUT” or “POST” and pressing the corresponding button.

Which of these methods you have to use depends on the service. Services can use one or all of these three methods. More information can be found in the documentation of the service.

After the service has been successfully started, the results will be displayed in a hierarchical list that can simply be browsed and drilled down.

Services usually respond either with XML, JSON or plain text. NetworkToolbox tries to identify the response type automatically and provides and appropriate browser for that data type.

3.19.Certificates

CertificatesIf an organization wants to have a secure web site that uses encryption, it needs to obtain and use a site, or host, certificate. Certificates will also be used for other types of encryption such as E-Mail (via S/MIME).



This Tool helps to analyze a website certificate. Finding the certificate of an unknown host or IP Address can be very interesting. Often, this tool can reveal not only a single owner of that Address but also which other domains are using the same certificate.

There are two elements that indicate that a site uses encryption.

  • a closed padlock, which, depending on your browser, may be located in the status bar at the bottom of your browser window or at the top of the browser window between the address and search fields
  • a URL that begins with “https:” rather than “http:”

By making sure a web site encrypts your information and has a valid certificate, you can help protect yourself against attackers who create malicious sites to gather your information.

If a web site has a valid certificate, it means that a certificate authority has taken steps to verify that the web address actually belongs to that organization.

Browsers verify

  • a) that the web site address matches the address on the certificate
  • b) and that the certificate is signed by a certificate authority which the browser recognizes as a “trusted” authority

So far, this sounds great and very secure. However, recently some certificates have been issued by certificate authorities (CAs) that did not take the necessary steps to ensure that the requestor really is who he claims to be. This way, several certificates even for public websites such as Google have been issued to people who may use these certificates illegally and for criminal purposes.

Some browsers like Firefox have been updated so that they no longer accept and trust certificates from those untrusted CAs such as DigiNotar from the Netherlands or India CCA. On the other hand some browsers such as Internet Explorer and Chrome use the underlying OS for verifying certificates, and usually these browsers are not updated with trusted certificate lists as quickly and as often.

With NetworkToolbox you can verify and investigate server certificates immediately.

How to use

Just enter the website you want to inspect. Either leave the port number as 443 or enter another port number if you need to inspect the certificate of a different service.

Once you press Start, you will see whether a certificate is available and, if so, you will see all the details about the certificate in a readable form.

Most important are the fields “Revoked”, “Self signed”, “Valid to” and the Issuer information.

If a certificate was revoked, no longer valid or even self signed, it should not be trusted, at least if you require high security encryption.

The issuer should be a trusted CA, so if in doubt, just use Google to browse for the name of the certificate issuer to find out if there are reports of issues with this CA.

(As a reminder: just tap a bit longer on the Issuer entry in the list to copy the name to the pasteboard for later pasting in Google – for your convenience)

3.20.Bonjour

BonjourBonjour is Apple’s implementation of a so called “Zero-configuration network” technology. Bonjour locates devices such as printers, other computers, and the services that those devices offer on a local network using multicast Domain Name System (mDNS) service records.

Bonjour comes built into Apple’s OS X and iOS operating systems, Apple TV and many other third-party devices and can also be installed on Windows PCs.

If you run a Bonjour scan, you might be surprised at how many devices and software on your network is using Bonjour. Such a scan can reveal additional devices that were not found by a normal Network Scan as they may only respond to certain services.

In general, Bonjour devices are not more or less secure than any other devices, and the same rule applies: If you don’t need it, switch it off!

How to use

Once you press Start Scan, your network will be scanned for Bonjour devices and the result will be displayed in a list, or you will see a note that no Bonjour devices can be found.

The list is split into two sections Services and Devices. Both sections contain the same information. The difference is only how to drill down to the information. You can either drill down from a service such as airplay to the devices that are offering airplay services or else use the device list to see all services that a particular device is offering.

The device information usually contains information about the IP address and port which can be used for further analysis. The MAC address will be searched in the MAC database included in NetworkToolbox and this usually provides the name of the Vendor for better identification of the device.

Please note: As bonjour, due to its nature, does not provide a 100% reliable scanning method, further scans might be necessary in order to find all bonjour devices.

3.21.Bluetooth

BlueToothThis tool can be used to scan for Bluetooth LE or Bluetooth smart devices.





Please note: In order to use this tool, your device needs to support Bluetooth LE which is the case for all devices from and including iPhone 4S and iPad 3.

Bluetooth LE is also often called Bluetooth smart or Bluetooth 4.0. The old Bluetooth used for connecting headphones or speakers to your device is not the same as Bluetooth LE and only shares the same name.

The old Bluetooth, still supported by Apple devices, can not be scanned and analyzed due to restrictions of the API access from Apps.

Bluetooth LE is different and even more interesting as more and more devices, even Apple’s recently announced iBeacons, use Bluetooth LE for device communications.

However, you may want to know more about which devices “talk” Bluetooth LE and may want to see more information about those devices.

For those reasons, I implemented this Bluetooth tool to NetworkToolbox.

How to use

Once you press Start scan, your environment will be scanned for “listening” Bluetooth LE devices.

All found devices will be added to the result list of the scan and further details of each device is available from here. The details depend on the device type and may be self-explanatory like the Manufacturer Name or Revision or they may be a little cryptic.

Please note: Some devices may not respond immediately so further scans might be necessary in order to find such devices. Even if a device has been found, further scans may reveal more information. Some devices may even only respond if they are activated. Some devices may need to be moved or triggered. With my recently purchased FiftyThree pen for instance, I have to press the top of the pen a few seconds. Also, a Bluetooth LE device which is already connected to another device might not be visible for further scans. For this reason, just double check the Bluetooth settings of your iPhone/iPad and disconnect a device in case it is connected and can not be found.

3.22.Port Forward

PortForwardThis tool is useful for analyzing the traffic between two network devices. It acts as a man-in-the middle tool that connects the two devices and logs the traffic between them.

It can, for instance, be used to see what kind of information your desktop browser or e-mail client is sending to a web server or mail server. Often, browsers transfer more information than necessary, such as your computer type, its operating system and version etc.

How to use

First, you need to enter the port to which your device should listen. This can be, for instance, Port 8080. For the destination you need to enter an IP address and port number. The port numbers can be identical or different.

Once you press Open, another screen appears and your device will start listening to the specified port on the device’s IP address.

You can then use another device or even a browser on another computer on your network to connect to this IP address and the port you have entered.

Once the browser connects to your device, you will see that a connection was established. The tool will then try to connect to the IP address and port you have entered as destination. Once that connection is also established, it will send everything that has been received from the connecting device to the destination and vice versa. All data that is being sent back and forth will be displayed. You can hide one of the following three contents parts from the list by pressing the corresponding button at the top:

  • Client data – will show or hide the received data from the connected device
  • Remote data – will show or hide the received data from the connected device
  • Info – will show or hide information messages such as “Listening on…”

The Action button […] at the top can be used to print, copy or to send the logged information via e-mail.

3.23.MAC Database

ToolMacDBThis tool offers a huge database of all vendors who are entitled to assign their own MAC addresses. For more information about MAC addresses see help text chapter here.

How to use

To search the database, just enter either the first three parts of any MAC address (such as e8:8d:28) or a vendor’s name such as Apple. Then press Search and you will see all matching entries.

This tool will also be used internally by other tools of this App to add vendor names for MAC addresses wherever MAC addresses will be displayed eg in the Device or Network scanning tool.

3.24.IP Calculation

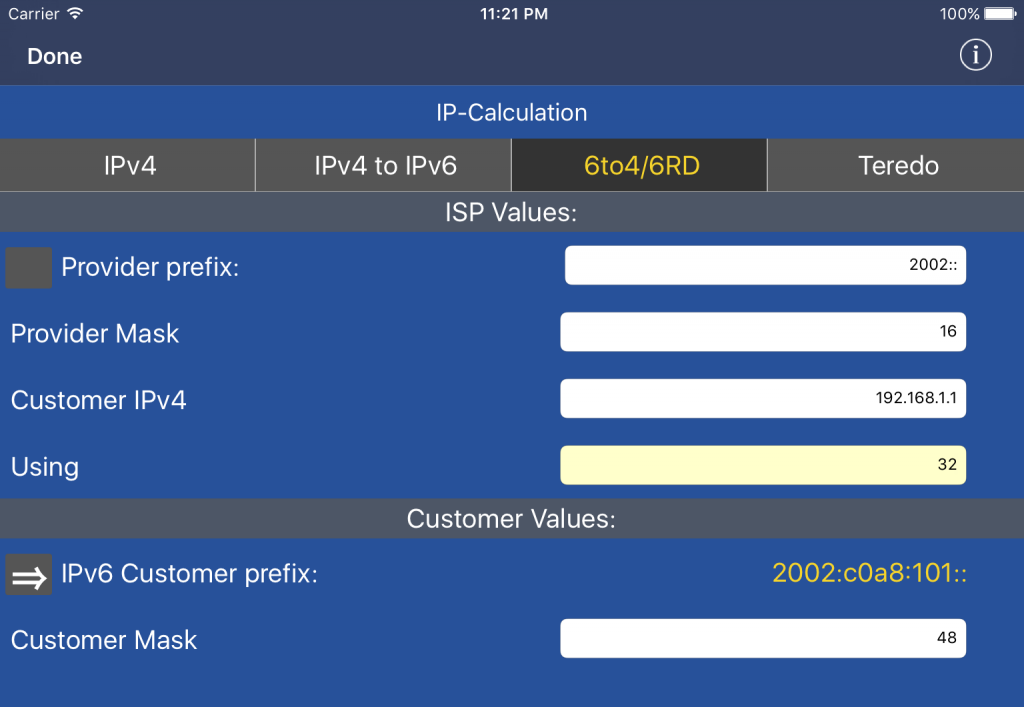

ToolIPCalcThis tool performs IP address calculations that are helpful in configuring networks.

It also offers tools for converting between IPv4 and IPv6 addresses.

How to use

First, select the desired calculation you wish to perform from the selection at the top.

Next enter the values (IP Address, Masks etc.) for the calculation.

Please note: You can also enter IP addresses in slash notation (net/mask).

ipcalc-1

In the above case, the calculated values will be displayed at the bottom of the screen.

For the IPv6 6to4/6RD calculation, the calculation can be performed in both directions like here:

ipcalc-2

You can either convert the Provider values to Customer values or vice-versa as seen above. To switch the calculation direction just tap the Grey button in front of Provider prefix: or IPv6 Customer prefix: depending on which value should be calculated.

3.25.Local Files

FilesThis tool allows you to access or upload the files downloaded or uploaded using the FTP, SFTP or SMB Tools.



iOS doesn’t offer folders that can be accessed from other Apps and doesn’t allow access Memory cards or USB sticks. For this reason, all downloaded files or files that should be uploaded will reside on a special directory only accessible by NetworkToolbox.

This local file Browser Tool can be used to access this directory.

More Information can be found in the chapter File Management of this Manual

3.26.Security Check

SecurityCheckThis tool offers various tests that can be used to check for certain vulnerabilities. The number of security tests offered in this tool will grow over time as they can be updated via data update and don’t require an App update which may take several weeks to be released.

You will find information about newly added security checks in the News section of the App and the website networktoolbox.de.

So please check the news and for data updates from time to time.

How to use

To perform a certain security check, just select the corresponding entry from the list. The information that needs to be entered in order to perform a test depends on the test itself. Mostly, you need to enter a host name or IP address and port. The port may be optional.

You will find more information about the test below the entry fields. Once you start the test by hitting the “Start” button, you will see information about the progress of the test further below. Once the test is finished, information about possible findings will be displayed.

3.27.Mail Server

MailServerThis Tool can be used to check for POP3, IMAP and SMTP Mail services of a mail service.

The results can either be used to find out whether your own Mail server has been configured correctly or to identify the required mail settings in your mail client for a particular external Mail server.

How to use

To check a mail server, you can either enter the domain name of the mail server or its IP address. It is not necessary to add subdomains e.g. POP3 or IMAP etc. as this tool will test for the most common names automatically.

Once the check has been started, you will see a list of available services and some recommendations at the end of the list. Entries in the list can be tapped and will provide more information with server responses so you can see which kind of password security and other options are available.

Besides providing detailed information about each mail service of a mail server, you can use this tool for identifying the (or the best) settings for your mail client.

For instance, you can see whether or not your mail provider offers IMAP in addition to POP3 and which mail server names and port settings have to be used for your mail client.

3.28.Speed Test

SpeedTestThis tool provides possibilities for transmission speed measurements and is based on the iPerf standard.

How to use

Once this tool has been opened, you can select one of the pre-defined public iPerf Servers by using the selection or you can enter an address manually. You can also enter an IP Address or host for a local iPerf Server or even of another iOS Device running this App as Server.

Below, you can enter a Port which will be used for the connection to the server.

Please note: Even though, most iPerf server listen to port 5201, not all servers do so. Once you select a server from the list, the corresponding port for the selected server will automatically be used.

After tapping Start Test a quick, bi-directional test will be performed. As all public iPerf servers are very frequented, it may happen that you get an error message saying that the server is unavailable. In this case, either try again a few seconds later or select another server.

If the test has been finished, you can see the results on the following screen.

Advanced features

If you enable the Advanced switch at the top, you can enter additional parameters as follows:

  • You can select if this App should act like an iPerf Server instead of a Client
  • You can select if either an Upload or Download test should be performed. If Advanced is switched off, each of these tests (upload and download) will be performed one after the other
  • You can select if a UDP test should be performed instead of a TCP test
  • You can select a Block Size

Please note: A UDP Test can only be performed to a local Server and not to a public Server on the Internet. For this, you can even use another iOS device, running NetworkToolbox, let one act as Server and the other one as Client, to perform a UDP Test.

WARNING: Be careful when using this test via your Cell network. In order to produce accurate figures, the test transfers a fair amount of data back and forth which may drain your data rate.

3.29.Glossary

GlossarThis glossary is an alphabetical list of terms used in Network technology with definitions and explanations of these terms.

How to use

You can either browse and select the terms from the alphabetical list, or you can use the search function in the navigation bar to search for a specific term.

4.Tool Maintenance

A few Icons are actually not Tools by themselves. Instead they offer Maintenance for other Tools.

These Tools use a different (green) color to be differentiated from the other Tools.

4.1.Passwords

PasswordsPasswords that have been discovered by tools such as the http or telnet tools can be collected as custom passwords for future reference and re-use.

To collect a password in those tools, you can use the “Add custom password” function from the action button […] which will be available once you entered or selected a password.

Those passwords can be maintained in this tool of the App.

But you can also add your own pre-defined or commonly used username/password combinations here.

If you want to add your own custom passwords, just press the “Add” button at the top of the screen.

To maintain a password, just tap the entry you want to modify. In addition to the automatically added fields like Title, Host, Username and Password, you can also add a comment.

To use these custom passwords from within the tools, you can select “Custom list” instead of “Default list” when using the “Login” function for example of the HTTP tool.

4.2.PKI

PKISimilar to, but more secure than, passwords, Public and Private Key combinations can be used for SSH connections as in the SSH or SFTP Tool.

Just as in the Passwords tool, you can maintain and even generate new Public and Private keys here inside this tool.

All Public/Private keys entered here in this tool can be used from inside the SSH and SFTP Tool.

To add an existing Public/Private key combination, just tap on “Empty” under the “Create new” heading. To generate a new key, please see further below under Generate your own keys

You will then see the key entry screen.

In the top line of the key entry screen you can maintain an individual name for the key combination.

The public key needs to be entered (or pasted) to the top big entry field. The private key can be entered or pasted in the lower field. You can use either OpenSSH or Putty keys but please note: For Putty keys, Public and Private keys are combined together and needs to be entered or pasted in the private Key entry field. The upper Public Key entry field needs to be left empty in case of Putty keys.

Public keys are always unencrypted. Private keys can also be unencrypted but it is recommended to always store private keys encrypted. For the encryption, a password (sometimes called passphrase) will be needed. For that reason, I recommend you take advantage of the optional use of a password for the private key – see later.

To check whether the entered keys are valid and in order to obtain the Key Fingerprint, just hit the Validate button at the bottom. If you are using an encrypted private key, you will be asked for the password before you will see the validation results.

Generating your own keys

To generate a new key combination, just hit one of the other buttons below the “Create new” heading, depending on the type of key you want to generate.

Once you hit any of these buttons, you will be asked for a title, the key size and encryption type (RSA or DSA) and an optional password. If you leave the password blank, the Private key will not be encrypted.

When done, just hit the right check button at the top and a new key will be generated. This may take some time on slower devices especially if bigger key sizes are being used.

You can then find the newly generated key entry in the list. By tapping on that entry, you can edit, copy and validate this information.

Under Resources, Tutorials and Public/Private key Tutorial you will find a tutorial which explains how to use keys generated by NetworkToolbox to secure a linux login.

4.3.Devices

CustomDevicesDevices on your local Network will be displayed along with their MAC Address and sometimes with its network Name. Depending on your Network, some or all devices may not publish their network names so they might be hard to identify.

For this reason, NetworkToolbox offers the possibility to assign your own names for your devices. Once you assign such a custom name, this name will be displayed instead of the network name along with the device.

You can enter Custom names in three different ways.

  1. After scanning, you can tap on the details of scan results where local devices are displayed and just enter the name of that particular device.
  2. After scanning, you can export a complete scan list to the list of custom device names by hitting the […] button at the top and select “Add to Custom Devices”.
  3. You can add (or edit) entries manually from here by just hitting the Add button or tap on the entry in the list you want to edit.

You have to enter at least a MAC address. All other fields are optional.

As MAC addresses are unique, there is no need to maintain this list on a per-network basis. If you are maintaining different networks (e.g. at home and at work) you can add all Devices from both networks to this list. In that case, you may want to prefix the name accordingly to distinguish the devices from each other.

4.4.Macros

ToolCustomMacrosThis Tool allows you to maintain text that can be sent from inside the Telnet (Socket) and SSH Tools.

This is useful, if you often have to send one and the same command or long text to a server.

A Macro can contain plain Text, special Characters or commands e.g. to call another Macro. For details see Macros.

How to use

On the main screen, press “Add” to add a new Macro.

On the following screen you have to Name the Macro first.

In the field below, you can type the text which should be sent to the server when this Macro has been started.

For details about special Characters and Commands that can be used in a Macro, see here.

5.Logbook

This section of NetworkToolbox can be used to store all type of scanning results for later use. You can even compare two different Network Scans.

To add content to the Logbook, just tap the […] button in the different sections of the App either to add a single entry such as a host or IP Address to the Logbook or complete lists such as Port or Network scanning results.

Whenever an entry is to be added to the Logbook, you will be asked for a keyword. This could either be left blank or you can enter a term that will help you to identify the results later in the logbook or collect multiple results using one and the same keyword. Once you have entered a keyword, the same keyword will be pre-entered in further cases so you don’t have to remember and re-type the keywords you entered before.

On the Logbook screen all entries can be found either under “All” or by selecting the entries further below by the type of scan from where you added the logbook entries.

logbook

The Logbook entries

Once you have selected a Logbook type, all entries are grouped by the keyword you entered as described before.

In the entry list, you can just tap on the entry to see the contents.

Entries can be deleted by swiping left. You can also change the keyword by tapping the (i) button.

Once you tap on an entry in the Logbook, you will see the details (e.g. list of scanning results) in the same way as they appear under the “recent” entry in each individual scanning tool. So you can further analyze the findings from here.

You can also remove individual entries from this list by left swiping.

Network Scans can also be compared. This is useful if you perform Network Scans at different times and want to see which devices have been added, removed or changed. For this, just tap the […] button at the top of the Network Scan list in the Logbook and select “Compare two logs”. After confirming the explanation, just tap the two entries you wish to compare one after the other.

6.News

This News section is used to keep you updated with news about this App, such as new update announcements as well as new tips and tricks.

How to use

Please feel free to send me your own tips you want me to share with other users in this section. Just use the Support function in the settings section for this.

This section updates automatically if you set to check for updates automatically in the Settings section.

News identification

New posts are labeled with a red ‘New’ badge. Once a news item read, the badge disappears.
Some posts will be labeled with a green ‘Announcement’ badge – indicating messages of higher importance. Once a news item read, the badge disappears.

Deleting individual posts

News posts can be deleted by swiping your finger across the News post from left to right.

Bulk actions on News posts

From the main News screen under the Action icon […] (top of the screen) you can perform the following actions: Mark all read, Mark all unread, Delete all, Undelete all

Please use the News Preferences function to customize the type of News posts you would like to receive.

When you have opened an individual News item, you can interact with it by tapping the Action button […] at the top of the News item screen:

  • E-mail it to a colleague or a friend
  • Print over Wi-Fi
  • Share on Social Media or via Text message

7.Resources

This section of the App provides some App related and security related information. This section will be updated from time to time by data updates.

resources

8.Settings

This section of the App can be used to customize the layout and functionality of NetworkToolbox.

Most of the settings are self-explanatory and I would suggest that you play around and change some of the settings to get used to them. In case you get lost or change settings that prevent the App for working as expected, just use the “Reset to defaults” function from the […] action button.

8.1.Organizer

The organizer can be used to arrange the App tool icons on the main screen. Just drag and drop the = button on the right side of the screen to move tools up and down or even disable tools by deselecting the check mark on the left side of each tool.

8.2.External Apps

Your favorite Apps can be integrated into NetworkToolbox using this list to maintain external Apps.

External Apps will be made available as an additional option when using the […] action button for further analyzing or connecting to a destination.

Just press (+) to add a new external App.

The Title and Comment fields are optional but will help to identify or maintain the entry later.

The default port is optional and can be left blank if desired. However, if you enter a port number, the external App will automatically be selected when you use the […] button on an address with that port number.

The URL Scheme entry is most important and responsible for starting the right external App.

The URL Scheme is basically like a standard WEB URL with a specific prefix other than http://. The prefix depends on the App you want to start. For instance, some popular VNC remote access client Apps support the prefix vnc://.

In order to transfer the selected address to the external Apps, you can use macros in the URL Scheme as follows:

  • $address – for the IP address or host
  • $port – for the port number (if available)
  • $username – for the username (if available)
  • $password – for the password (if available)

So, a URL Scheme for an external VNC client could look like

vnc://$address

For testing, you can add the following:

Title: test
Default port: 80
URL Scheme: http://$address:$port
Enabled: 1

Now, if you tap […] on an IP address or host, you will no longer only see the included options (Copy, Domain infos…) but also an entry called Test which will open Safari as an external App on your device, as http:// is the URL Scheme prefix of Safari.

8.3.Shodan Settings

Shodan offers a free and paid service. I am paying for Shodan so that you can use this App with Shodan. However, the credits that can be used by the App are limited.

If you use Shodan more often, want to get more results or even if you want to support Shodan’s great service, I recommend to register for your own API key.

Once you have received your API key, you can select “Use own API key” in the Shodan Settings of this App and enter or paste the key in the field below.

The “Check API Key” can be used to find out the status of the key.

The “Use old Shodan API” switch at the top of the Shodan settings can be used if you experience issues with Shodan.

9.Background Information

9.1.IP Addresses and Ports

Generally speaking, an IP address can be seen as the street addresses of a house, whereas a port, on the other hand, can be seen as the door inside a house leading to an individual room.

IP Addresses

TCP (Transmission Control Protocol) and UDP (User Datagram Protocol) are two of the protocols that make up the TCP/IP protocol suite which is used universally to communicate on the Internet.

Each TCP/IP device (Computer, Router, Printer etc.) on a network has at least (but usually only) one IP (Internet Protocol) address. An IP address is a numerical label assigned to each device and serves two principal functions: host or network interface identification and location addressing.

The designers of the Internet Protocol defined an IP address as a 32-bit number and this system, known as Internet Protocol Version 4 (IPv4), is still in use today. A new version of IP (IPv6), using 128 bits for the address, was developed in 1995.

The 32-bit binary number is usually represented in groups of four numbers each between 0 and 255 and separated by a dot such as 172.12.214.2. Each number represents 8 bits of the total 32-bit number.

Ports

Each IP address theoretically has TCP ports numbered from zero to 65535.

Each port represents a service or function on a network device and can be used to communicate to the device based on the protocol that is defined by the port.

The first 1024 ports are called the Well-Known Ports and are associated with standard services such as FTP (file transfer protocol), HTTP (for websites), SMTP (e-mail), DNS and so forth. Some of the addresses over 1023 also have commonly associated services, but the majority of these ports are not associated with any service and are available for a program or application to use to communicate on.

A network device can run multiple services at the same time but each service needs to use a different port. For instance, a server can run a web-server service on Port 80 to show websites and it can also offer a mail-server on Ports 110 (POP3), and 25 (SMTP) for instance. If one connects to the IP address at Port 80, the server will respond with a HTTP header; on the other hand, when connected to Port 110, the server will respond with the standard response for a POP3 mail server.

9.2.MAC Adresses

A MAC address (Media Access Control address) is a unique identifier assigned to network interfaces (Network card) for communications on the physical network segment. MAC addresses are mostly assigned by the manufacturer of a network interface controller (NIC) and are stored in its hardware. A network node may have multiple Network cards (NICs) and each must have one unique MAC address per NIC.

A MAC address is usually represented by six hexadecimal numbers separated by a colon like f0:d1:a8:08:21:07 for instance.

This App offers a huge database with all vendors who are entitled to generate their own MAC addresses. The aforementioned MAC address for instance has been assigned by Apple.

9.3.Network Scanning

Network scanning is a procedure for identifying active hosts on a network, either for the purpose of attacking them or for network security assessment. Scanning procedures, such as ping, sweeps and port scans, return information about which IP addresses map to live hosts that are active on the network.

(To learn more about IP addresses, have a look at the the chapter IP Addresses and Ports of this Manual)

Scanning is one of three components of intelligence gathering for an attacker. In the foot-printing phase, the attacker creates a profile of the target organization, with information such as its domain name system (DNS) and e-mail servers, and its IP address range. Most of this information can be collected by this App.

As a result of a network scan, you will receive a list of IP addresses, along with the MAC addresses and network names for each of the IP addresses.

(More information about MAC addresses can be found in this Chapter)

The next step is usually a port scan on each individual IP address.

(More information about port scanning can be found in this Chapter)

9.4.Port Scanning

Port Scanning is the name for the technique used to identify Open ports and services available on a network host, either for the purpose of attacking them or for network security assessment.

You can run a port scan to audit your network for Vulnerabilities; however, it is also used by hackers to target victims. It can be used to send requests to connect to the targeted computers, and then keep track of the ports which appear to be open, or those that respond to the request.

(to learn more about ports, have a look at the chapter IP Addresses and Ports of the help text)

Open ports as such are not dangerous and do not mean a network is insecure. Some ports simply have to be open in order to allow communication between devices. However, ports should not be open unless they really need to be.

It is also important to differentiate between ports that need to stay open for internal communications (within your network) and those that need to stay open to allow communications with an external network or, in other words, with anybody on the Internet.

Once you discover which ports are open, by port scanning your network using this App, you can then determine whether it is necessary for those ports to be open. And, if so, whether they need to be open to the internal network, the external network or to both. If, however, they do not need to be open, that is, no service on the internal network or the external one needs access to those ports, then you should close them. On the other hand, if they do need to be open, especially to the external network, you can then begin to research what sorts of vulnerabilities and exploits your network is open to by having these ports accessible and then apply the appropriate patches, updates or mitigation to protect your network as much as possible.

Ports that need to stay open to communicate only within your internal network, and not to the external one, should to be protected by a firewall, which, as the name suggests, puts a “wall” between those open ports and all other networks. Home network routers that are used to connect the internal network to the Internet usually have a basic firewall functionality included. They offer at least a functionality called NAT (Network Address Translation). This is the easiest way to protect your internal network from the outside. With NAT, your internal network has a different IP address range to the address of the external, Internet connection. Internal IP addresses often have the range of 192.168.x.x., and are usually fixed, whereas the IP address used to connect your router to the Internet, called the Public-IP address, may well change from one day to another. The Device tool in this App will display both addresses.

NAT allows data packets from one network to pass to another. So, for example, in order to browse the Internet, NAT is configured to pass all internal data from Port 80 to the public IP address on the same port and vice versa.

If the router were configured to only handle data on Port 80, all other open ports in your internal network would not be accessible (ie would be blocked) from the outside and you would be safe in that respect, but life is never that simple. You sometimes want to use your internal network’s services or resources (such as a web camera or hard drive) over the Internet as well as over your internal network. The relevant ports would need to be open to the internal network, but you could not have those same ports simultaneously open to the external network. The reason for this is simple: you cannot have two sets of communications passing through the same port at the same time. A port can only be used for one service at any one time, otherwise it would be like trying to listen to two people talking to you at the same time; confusion would result and a network error would be triggered. So you would need to configure the router so that an external connection to the device is assigned a different port to that used for internal communication.

An example would be a web camera. You can usually watch the camera internally by simply entering its IP address in your browser’s address bar, because the camera is communicating via Port 80 (HTTP). Now, if you also want your web camera to be accessible externally, your router would need to be configured so that incoming connections to the camera arrive at the router, let’s say, at Port 8080 and are then passed to Port 80 at the internal IP address of your camera. Your camera would then be accessible externally by entering its public IP address in a browser (on an external network) and adding :8080 to the URL, meaning that the external connection to the router will be established on Port 8080. Then, due to the way you configured your router, that connection would be routed internally to Port 80 at your web cam.

So if you do a port scan, you will need to keep this in mind.

9.5.Device search with Shodan or Morpheus

The main use for Shodan or Morpheus is to search for network devices of a specific type, name or even location. With Shodan or Morpheus it is possible for instance to search for TV-Set-Top-Boxes such as the Dreambox, Web-Cameras or any other device that is connected to the Internet. Most such devices will answer with a specific response when connected to. This response may even contain the name of the device or something that is unique to the device, and this is the basis of how Shodan or Morpheus work. They simply collect and store the responses in a searchable database.

The HTTP-Head tool of NetworkToolbox allows you to analyze such information from an individual device.

Morpheus is an alternative to Shodan. Like Shodan, it is a device search engine and can be used to search for certain Servers, Routers, Set-Top Boxes and other devices on the net. Morpheus works best when using Ports 80, 21 and 443, whereas Shodan searches for additional ports. Morpheus also has newer entries and only keeps old entries if they continue to be accessible. Both engines use different approaches to crawl the Internet for devices.

So both search engines have their own pros and cons and it’s probably good to try both engines when searching for a particular device.

Please keep in mind, Morpheus is currently in Beta testing and might be offline or slow at times.

9.6.Password Test

Password tests are offered in the HTTP, FTP, SFTP, SSH and Telnet tools.

A password test lets you test the server for certain commonly used username and password combinations. When this function is started, you will see a list of username/password combinations.

Alternatively, you can switch to your own customized username/password combination.

You can toggle between predefined and your custom list by pressing the corresponding tab at the top of the list. Please read further below about how to maintain custom passwords.

Once you select an entry in the list, it will be checked to see if that username/password combination opens the server (web-site or ftp/sftp account). If this fails, the list will be displayed again but the last username/password combination tried will be struck through so you can easily see which combinations have not yet been tried. Alternatively, you can manually enter a username/password combination.

It may well happen that you are able only to try one or two username/password combination and no more. This can happen if the server’s security features disconnect you after a couple of failed login attempts. In this case, you will need to go back and open the connection again. However, the tool still remembers the username/password combinations you have already tried. It may also happen that the website times out before you manage to select a username-password combination and you get an error message. This is also due to tight security settings, and you would need either to be quick or else to enter username/password into the main screen of this tool.

The provided list of username/password combinations will be updated from time to time to contain the most commonly used combinations or even to exploit backdoors built in by the manufacturer. It is well known, for example, that HP have built backdoors to their devices. It is highly advisable that you test your own devices, such as routers and web-servers, to see if one of those combinations will let you in. In that case, you should quickly close this security failure by changing those credentials on your device and installing any updates. Also, as mentioned before, you can also try to change the settings so that only one failed login attempt is possible or that the connection times out quickly.

It is usually safe to perform this test on your own equipment unless you have intrusion-detection systems in place which assume this kind of test is an attack and then proceeds to block connections from your iPhone or iPad either permanently or otherwise.

Custom passwords

Custom passwords can either be maintained manually or collected from inside the individual tools.

To maintain the custom password list manually, just open the Passwords Tool. Here, username/password combinations can be added manually by hitting “Add” button. Along with username and password, you can also enter a Title, host and comment. These fields are optional. However, if a hostname (domain or IP address) is entered, the corresponding entry will be highlighted in the password selection list once you are connected to that particular server.

Besides manually maintaining a username/password combination, it is also possible to create a new entry with discovered username/password combinations. For this, you can use the HTTP, FTP, SFTP or Telnet tools as usual and can either login to the server manually or by using the default password list. Once you are logged in, you can press the action button […] and select “Add Username/Password to Custom Password list”. This will create a new entry with even the Title and Host field filled out.

9.7.Directory traversal tests

A directory-traversal exploit is an exploit where a website is accessed with additional parameters that cause the web-server to malfunction and/or reveal hidden information and file contents.

A classic example is to add parameters such as /../../../../../passwd at the end of a website url which may display the contents of the password file of the server. There are many different traversal exploits for Windows systems or embedded devices.
Once started, the traversal test will show a list of common and known traversal exploits, just like the password test. You can test one exploit after the other by just selecting a corresponding entry in the list. Ideally, you will get an error message or the website will be displayed as before.

You can try one entry after the other. All previously tested entries will be struck through.

If one of these exploits results in a server malfunction or even reveals security information, you most likely will have to install updates for that device. If no updates are available, it is highly recommended that you replace that particular insecure device.

It is usually safe to perform this test on your own equipment unless you have intrusion-detection systems in place that assume this kind of test is an attack and then proceed to block connections from your iPhone or iPad either permanently or otherwise.

9.8.Browser Agents

Modern websites display different content depending on the browser type. This is especially interesting for mobile websites. Normally, with Safari on your iPhone or iPad device, you will only see mobile websites that reduce the amount of content so they display well on mobile devices. Unfortunately, most websites see an iPad as a mobile device and show their content in the same way as they would for an iPhone. With the HTTP tool, you can select different Agents. For instance an Agent for a desktop computer such as Firefox will show how the website would look on a desktop computer. You can also select Blackberry and see how the website would look on a Blackberry device (of course only if the website provides different content for Blackberry devices).

9.9.File management

In order to upload and download files, the FTP, SFTP and Local Files tools can be used.

All files that are being downloaded from inside the FTP or SFTP tools will be downloaded to a local storage location inside this App. This local storage area can be accessed from the Local files tool.

So if you want to download a file from an FTP or SFTP server, just connect to the server with one of these tools. After downloading the file, you can open the Local files tool and see the downloaded file. From there, you can alter the file or even alter directories in your local storage location and process the file further by using the following functions in the command bar:

  • .. – to change one directory up
  • / – to change to the root directory
  • CD – to change to a specific directory (the name will be asked after pressing)
  • MD – to create a new directory
  • RD – to remove a directory
  • DEL – to delete a file
  • REN – to rename a file
  • View – to view a file
  • Open – to open the file with any other App installed on your device
  • E-Mail – to send the file via e-mail

(Please note, the command bar can be scrolled horizontally if the buttons won’t fit on the screen)

9.10.MACROS

Macros can not only contain plain Text. They can also contain control characters or commands.

Control Characters

Control Characters start with a ^ followed by a Capital letter (e.g. ^A) which sends the corresponding Code to the Server. The Code is equivalent to the Code generated by pressing the Control Key along with the Letter on a regular Keyboard. ^M for instance is Carriage Return.

Such special Keys can also be sent by naming the Key surrounded by { and }. For instance {CR} will also send a Carriage Return and {BS} will send a backspace.

Further below is an ASCII Table containing all key names.

Macro commands

In addition, the following commands can be used in a Macro:

{SLEEP:n} – The Macro will wait for n seconds
{CALL:macro} – Another Macro with the Name macro will be called

ASCII Table

Dez Hex Okt Name
0 0x00 000 NUL
1 0x01 001 SOH
2 0x02 002 STX
3 0x03 003 ETX
4 0x04 004 EOT
5 0x05 005 ENQ
6 0x06 006 ACK
7 0x07 007 BEL
8 0x08 010 BS
9 0x09 011 HT
10 0x0A 012 LF
11 0x0B 013 VT
12 0x0C 014 FF
13 0x0D 015 CR
14 0x0E 016 SO
15 0x0F 017 SI
16 0x10 020 DLE
17 0x11 021 DC1
18 0x12 022 DC2
19 0x13 023 DC3
20 0x14 024 DC4
21 0x15 025 NAK
22 0x16 026 SYN
23 0x17 027 ETB
24 0x18 030 CAN
25 0x19 031 EM
26 0x1A 032 SUB
27 0x1B 033 ESC
28 0x1C 034 FS
29 0x1D 035 GS
30 0x1E 036 RS
31 0x1F 037 US
Suggest Edit
